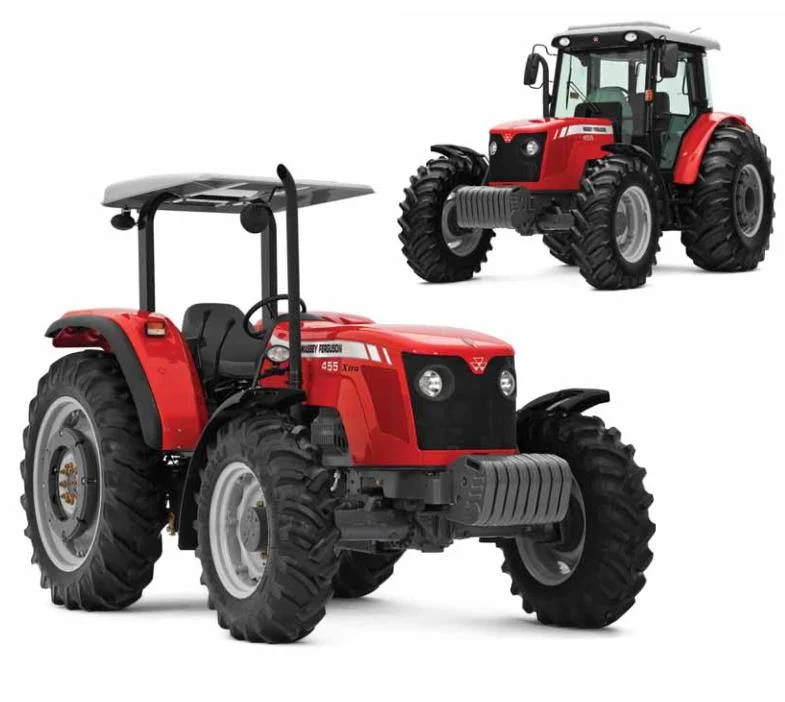

Massey Ferguson MF 455 XTRA (4wd 100hp)

Massey Ferguson MF 455 XTRA (4wd 100hp)

Categories: ,

Description

Performance
Engine Power at 2,200 rpm> 85 (B.S) hp
Torque at 1,400 rpm 212 Nm
PTO Power at Rated Engine Speed 70 hp
*Certified at BS AU 141a **Manufacturer’s estimate
Electrics
Voltage 12V, Negative Earth
Battery 110 Ah
Starter 2.8 kW
Alternator 45 Amp
Transmission
Type Sliding Spur
Number of Gears 8 Forward, 2 Reverse
Road Speed at 2,200 Engine RPM with 18.4/15-30 rear tyres
Gear Speed (km/hr)
Forward 1 (First Low) 2.7
Forward 2 3.7
Forward 3 5.1
Forward 4 6.8
Forward 5 (First High) 10.4
Forward 6 15.2
Forward 7 20.8
Forward 8 27.9
Reverse 1 (Low) 3.5
Reverse 2 (High) 14.1
Hydraulics
Functions Draft Control, Position Control Response Control, Constant Pumping
Pump Type 4 Piston, Ferguson Pump
Oil Flow 16.7 ltr/min
Pressure 21.2 Mpa at normal operating temperature
Lift Capacity with Lower 2,145 kg
Links Horizontal
Lower Links With Cat. I & II Interchangeable Balls
Rear Axle & Brakes
Axle Type Straddle with apicyclic redution unit
Brake Type Oil immersed, Multi-disc
Brake Pedal Pendant
Braking Area 1.774 sq. cm
Brake Actuation Hydraulic
Parking Brake Hand Lever Operated
Tyres
Front 7.50 – 16 (6PR)
Rear 18.4 / 15 – 30 (6PR)
Clutch
Type Dual
Diameter 305 x 254 mm
Lining Material Cerametallic
Front Axle
Type Heavy Duty Box Section, Adjustable
Steering
Type Hydrostatic
Track Adjustment
Front Axle 1,271 – 1,881 mm
Rear Axle 1,423 – 2,134 mm
Engine
Make / Type Diesel / 4.41
No. of Cylinders 4
Injection Direct
Bore 101 mm
Stroke 127 mm
Capacity (litres) 4.1L
Compression Ratio 15.3:1
Aspiration Natural
Starting Aid Thermostart
Throttle Control Hand and Feet
Cooling Water
Air Cleaner Type Oil Bath
Air Pre-Cleaner Over Bonnet
Fuel Filter Dual, High Capacity
Exhaust Vertical Muffler
Oil Cooler Water Cooled
Power Take Off
Type Live
Engine Speed at 540 pto rpm 1,789 rpm
Shaft Diameter 35mm
No. of Splines 6
Instrumentation
Guages Technometer, Hourmeter, Fuel Level, Battery Condition & Water Temperature
Warning Lights Direction Indicators, Electric Charge, Headlight Main Beam, Low Engine Oil Pressure, Brake Lights & Auxiliary Socket
Weight & Dimensions
Weight
Gross Weight 2,435 kg
Dimensions
Wheel Base 2,286 mm
Overall Length 3,760 mm
Overall Width (Min) 1,871 mm
Height
Over Exhaust 2,485 mm
Over Steering Wheel 1,781 mm
Turning Circle
Without Brakes 7,502 mm
Ground Clearance
Under Gear Box 501 mm
Capacities
Fuel Tank 108.0L
Engine Pump 7.5 L
Cooling System 15.2L
Hydraulic System 36.0L
Hydrostatic Steering Reservior 2.0L
Oil Bath Air-Cleaner 0.7 L
Brake Oil 0.25L
Standard Equipment
Weight frame without weights, standard tool box with set of tools, Top Link, Top Link End Cat-I, Cat I & II balls, Check Chains, Spring Suspension Seat, Flat Top Fender & Operator’s Manual
Optional Equipment
Front End Weights, Swinging Draw Bar, Sun Canopy, Pintle Hook
